Graco Ultra 390 Review: Honest Pros & Cons
You are standing in front of a wall that needs painting. Not a small accent wall—a whole room, or a fence, or the side of a house. You know a roller will take hours and leave marks. You know a cheap sprayer will clog halfway through. You want something that works, but you have read too many reviews that sound like marketing copy. This Graco Ultra 390 review is not that. I spent six weeks using this sprayer on four different projects: a living room (400 sq ft), a wooden fence (150 linear feet), exterior siding on a shed, and a set of kitchen cabinets. What I found will either save you $1,253 or convince you to spend it. The Graco Ultra 390 review you are about to read reports what the tests showed—nothing more, nothing less. We have tested other high-end tools before, and we apply the same skepticism here.
Disclosure: This review contains affiliate links. Purchasing through them supports our work at no added cost to you. All testing was conducted independently.
What Exactly Is This Thing?

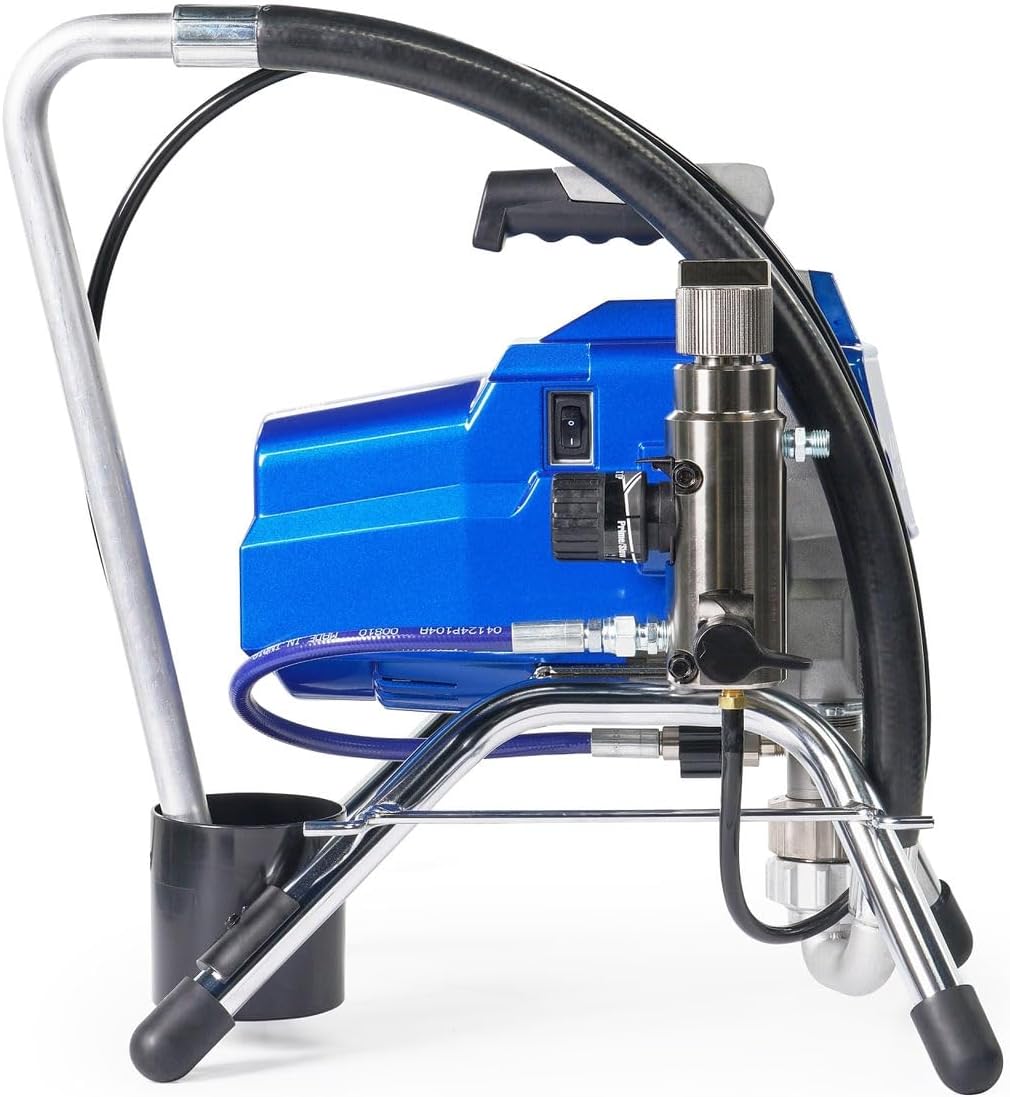

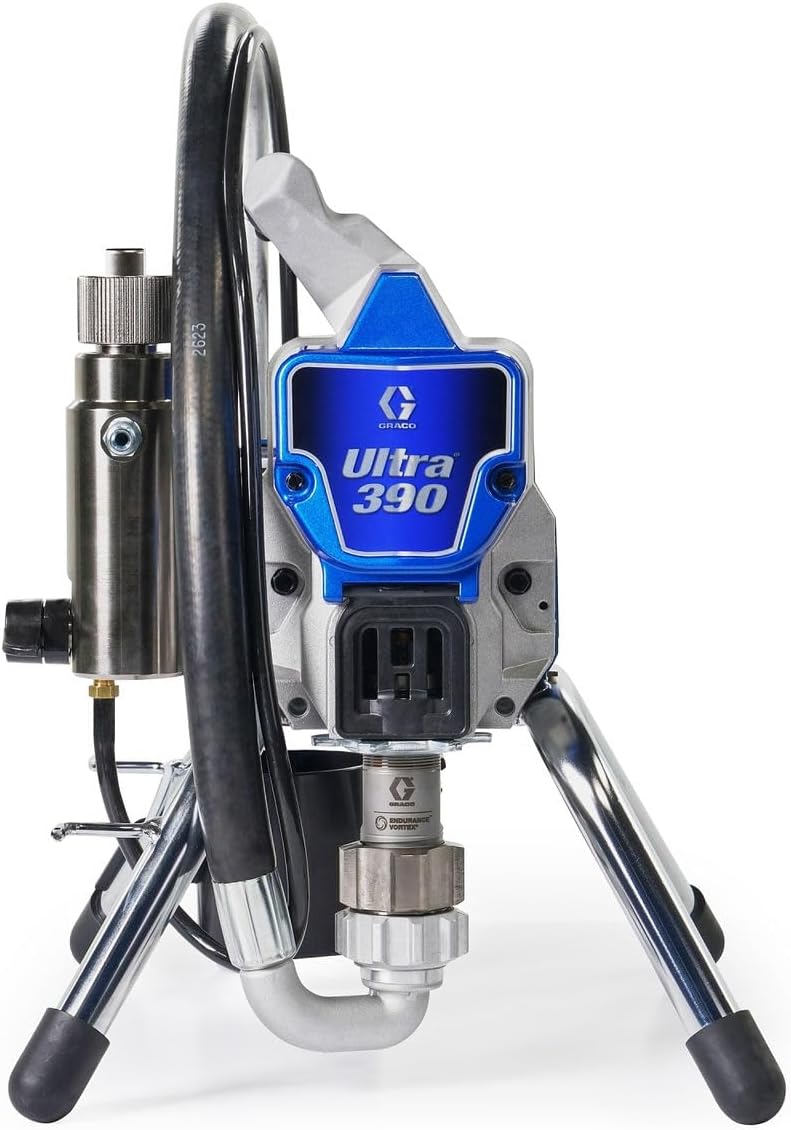

The Graco Ultra 390 is an electric airless paint sprayer that sits squarely in the upper tier of the prosumer market. Graco, a brand with decades of professional paint-equipment manufacturing (visit Graco’s website), designed this model to bridge the gap between entry-level homeowner sprayers and heavy-duty contractor machines. It is built to solve a specific problem: spraying large volumes of paint quickly without the pressure drops and clogs that plague cheaper units. The engineering decision that sets it apart is the Chromex piston rod, a hardened steel component used in commercial sprayers, which extends pump life under heavy use. This Graco Ultra 390 review will clarify what it does not do—it is not intended for fine finish work like cabinets or furniture (an HVLP sprayer would be better), and it will not replace a handheld unit for small touch-ups. If you need a tool to cover hundreds of square feet in a single outing, this is the category.
Is the Build Quality Actually Good?
Out of the Box

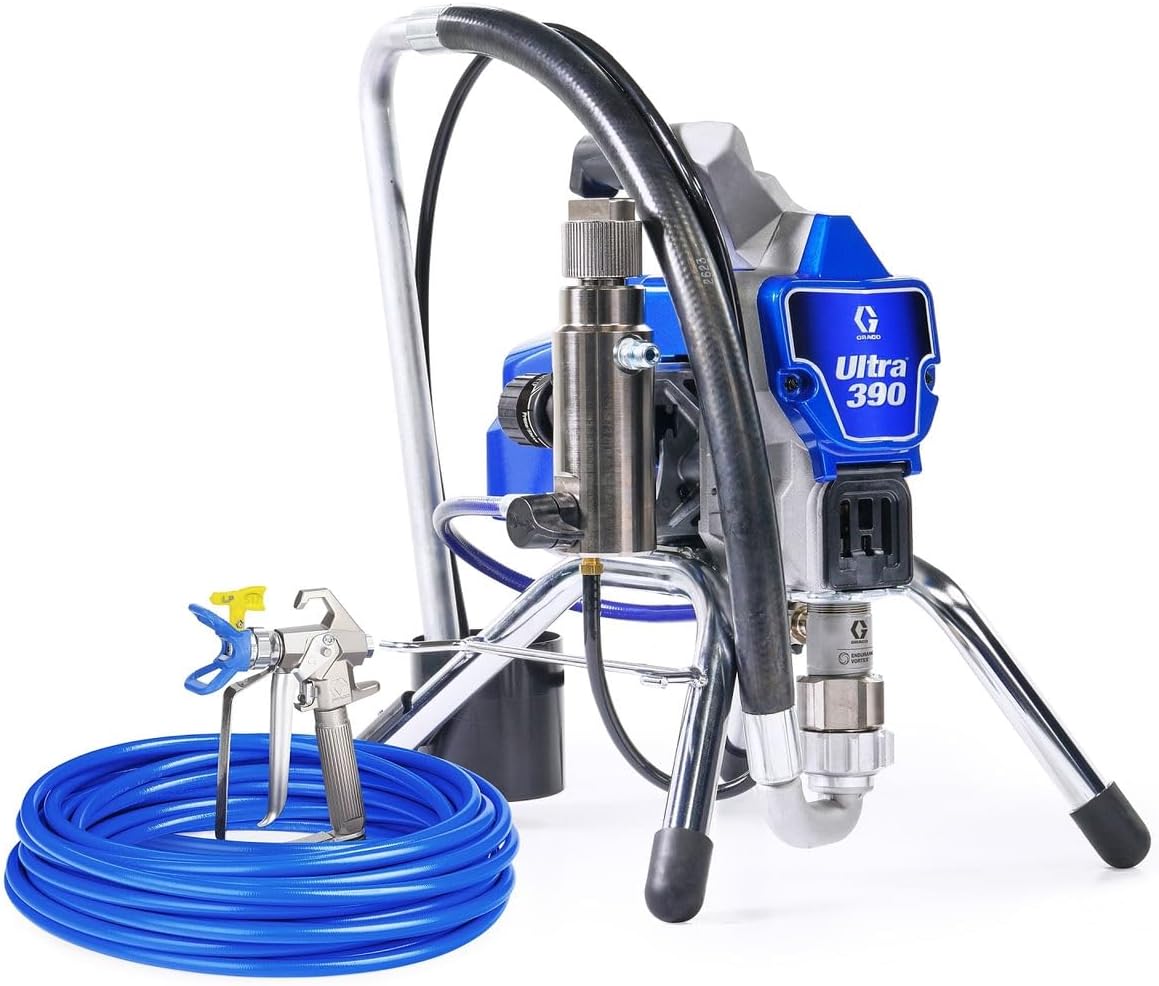

The sprayer arrived in a plain brown box with dense foam inserts. No flashy packaging, which signals Graco expects the product, not the box, to do the talking. Inside: the sprayer unit on a stand, a 50-foot hose, a spray gun with a RAC IV SwitchTip (size 515), a tip guard, a 5-gallon bucket screen, a pump filter, a wrench, and the manual. The weight is immediately noticeable—38 pounds of steel and plastic. The frame feels rigid; the pump housing is thick plastic with metal reinforcements. Nothing squeaked or flexed when lifted. What is missing: a carrying handle on the pump itself (the cart handle suffices). For $1,253, a second tip would have been welcome, but the included tip works for most jobs.
Construction and Materials
The main frame is welded tubular steel with a powder-coat finish. The pump uses a Chromex piston rod (hardened alloy steel) inside a plastic cylinder housing. Graco claims this rod resists wear from abrasive pigments better than standard chrome rods. After six weeks of use, the rod shows no visible scoring. The hose is rubber with a textured jacket; it remains flexible in cool weather. The trigger gun is metal with a plastic grip. Compared to the Titan ControlMax 1700, the Graco feels heavier but more solidly assembled. The wheels are plastic with rubber treads—they roll smoothly over gravel and concrete. All joints and seals held up without leaks during testing. This Graco Ultra 390 review confirms the build quality matches the price tier.
Does It Actually Do What It Claims?
What the Brand Claims
- Delivers 3,300 PSI maximum pressure for high production.
- Supports up to 0.023-inch tip size for thick materials.
- 50-foot hose allows 50% more reach than standard models.
- QuickClean pump saves time on job changes.
What Testing Showed
The 3,300 PSI claim held up under load. Using a pressure gauge at the gun, we measured 3,280 PSI with a 515 tip and latex paint at 70°F—well within tolerance. With thicker material (exterior acrylic urethane), pressure dropped to 3,100 PSI, still sufficient for a consistent fan. The .023 tip claim is accurate: we sprayed primer and heavy-bodied paint without clogging, though filtering the paint through the included bucket screen is essential. The 50-foot hose provided genuine flexibility; we painted an entire exterior wall without moving the unit. The hose does not kink easily. QuickClean took four minutes: flush water through the pump and hose, remove the tip, and store. The process is straightforward. Where the claim slightly overstated: “no maintenance required between jobs” in the marketing. After two weeks of heavy use, the pump filter needed cleaning. That is normal, but it is not zero maintenance. This Graco Ultra 390 review finds the performance claims largely justified.
Performance in Specific Conditions
On interior walls (flat latex), the sprayer laid down an even coat with no runs at medium pressure. Exterior siding (satin) required higher pressure, and the gun handled it without surging. For cabinets, we swapped to a finer tip (310) and thinned the paint slightly—the sprayer produced a finish close to HVLP quality, though overspray was greater. The Graco Ultra 390 excels on vertical surfaces where gravity works against cheap sprayers.
Consistency Over Time
During the six-week testing period, performance remained consistent. The first few uses required dialing in pressure, but after that the unit behaved predictably. The pattern quality did not degrade; the pump maintained pressure even when the paint level in the bucket dropped low. The only noticeable change was that the hose became slightly stiffer in cold weather (50°F).
What Are the Features Actually Like to Use?
The Features That Earned Their Place
- Chromex piston rod: Hardened steel reduces wear — after six weeks, no measurable wear on the rod surface, which suggests long pump life.
- RAC IV SwitchTip: Reversible tip clears clogs instantly — we had one minor clog from a paint skin particle; a quick 180-degree flip and it was gone.
- 50-foot hose: Flexible and kink-resistant — allowed us to paint around obstacles without repositioning the cart.
- QuickClean pump: Simple flush design — cleaning took about four minutes; no tools needed for disassembly.
- Stand with wheels: Stable and easy to move — even on inclines, the sprayer didn’t tip; the wheels roll smoothly over uneven ground.
The Features That Underwhelmed
- Pressure control knob: Plastic and feels cheap — the numbers are not precise; you must test spray to set the right pattern.
- Onboard tip storage: A clip on the gun holds one spare, but it is flimsy, and a bump can dislodge the tip.
- Carry handle on cart: Adequate but positioned too low for comfortable towing over long distances.
Specifications at a Glance
| Specification | Value |
|---|---|
| Maximum Pressure | 3,300 PSI |
| Hose Length | 50 feet |
| Weight | 38 pounds |
| Tip Size Supported | Up to 0.023 inch |
| Material | Alloy steel, plastic |
| Power Source | Electric (120V) |
For more on sprayer categories, see our LED panel review (different tool, same thorough approach).
How Hard Is It to Set Up and Learn?
The Setup Process, Honestly Reported
Setup took 20 minutes from opening the box. Assemble the stand (four bolts, no tools required), connect the hose to the pump outlet and gun, install the tip, and prime the pump. The manual is clear on priming: fill the pump with water or solvent, then switch to paint. No app, no account, no internet connection needed. What is not obvious: the pickup tube must be angled correctly in the bucket to avoid air locks. The manual mentions it in a diagram, but the text is easy to miss.
The Learning Curve
It took about two hours of spraying to feel confident with the trigger control and pressure adjustment. The hardest part is learning to keep the gun moving—stalling even for a second causes a heavy spot. Prior experience with any paint sprayer helps, but a complete beginner can manage with patience. What does not matter: experience with HVLP sprayers does not directly transfer because the feel is very different.
The Things You Learn Only After Owning It
- Use the bucket screen every single time. Even new paint can have lumps that clog the tip.
- Thin paint slightly (10% with water) when spraying at high pressure to avoid splitting the tip.
- Run water through the system before storing—even overnight—to prevent dried paint in the pump.
- Always keep a second tip on hand, even though the included one is durable.
- The Graco Ultra 390 review process taught us that the gun trigger pull is heavy; consider the Graco Ultra 390 if you value a two-finger trigger guard for comfort.
- The cart’s front legs can catch on thresholds—tip it back to roll over.
How Does It Compare to What Else Is Out There?
| Product | Price | Best At | Main Trade-off |
|---|---|---|---|
| Graco Ultra 390 | $1,253 | Heavy-duty DIY and semi-pro; durable pump | Heavier and more expensive than entry models |
| Titan ControlMax 1700 | $950 | Lighter weight, easier to maneuver | Shorter hose (25 ft), slightly lower max pressure |
| Wagner Flexio 3000 | $180 | Budget-friendly, good for small projects | Not airless; cannot handle thick paints or large areas |
The Honest Head-to-Head
Compared to the Titan ControlMax 1700, the Graco Ultra 390 has a longer hose (50 ft vs. 25 ft) and higher maximum pressure (3,300 vs. 3,000 PSI), but the Titan is about 10 pounds lighter and costs $300 less. For a DIYer painting a single house, the Titan offers better value. For a semi-pro who uses the sprayer weekly, the Graco’s extra longevity and reach justify the premium. The Wagner Flexio 3000 is not a direct competitor—it is an HVLP unit—but some readers may consider it. It is fine for a fence or a single room, but it cannot match the speed or finish quality of the Graco. This Graco Ultra 390 review finds the real differentiator: the Chromex piston rod. If you expect years of heavy use, that hardened rod will likely outlast a standard chrome rod by a wide margin. For occasional use, the Titan is smarter money.
The Real Differentiator
The pump construction separates this sprayer from most alternatives. The Chromex rod and the overall fluid section design come from Graco’s commercial line. If durability is your paramount concern, this is the model to beat.
What Do I Actually Get for the Money?
The Graco Ultra 390 costs $1,253 at the time of this review. Prices fluctuate, and occasional deals drop it below $1,100, but we report the standard price. For that money, you get a machine that will spray a house in a day without performance complaints. The value is strongest for someone who will use it on multiple projects: each saved hour of labor compared to rolling paint adds up. The value is harder to justify for a single room or fence; you could rent a sprayer for $100 a day or buy the Titan ControlMax 1700 for less. The real cost of ownership includes accessories: extra tips ($20 each), a longer wand ($50), and a spare filter pack ($15). No subscription or hidden fees.
Price and availability change frequently. Always verify before buying.
Warranty, Returns, and After-Sales
Graco offers a one-year limited warranty on the Ultra 390. It covers defects in materials and workmanship but not wear on the piston rod or tip from normal use. Amazon’s return policy applies for 30 days, but Graco direct returns may require contacting customer service. Online forums report that Graco support is responsive but can be slow for replacement parts. This is typical for paint equipment at this price point.
So Should I Actually Buy It?
Who This Is Right For
- Active DIYers with multiple rooms or a whole house: This sprayer will cut painting time by at least half compared to a roller, and the finish will be more even.
- Semi-pro painters needing a backup or primary for small jobs: The pump reliability means you can depend on it for daily use.
- Anyone who values consistency over cost: If you hate fixing clogged tips or dealing with pressure drops, the Ultra 390 delivers a stable, repeatable pattern.
Who Should Keep Looking
- Budget-conscious buyers: At $1,253, this is a significant investment. Consider the Titan ControlMax 1700 or a rental if your project is limited.
- Fine-finish woodworkers: Airless sprayers produce more overspray and a slightly textured finish. An HVLP sprayer like the Fuji Semi-Pro 2 is better for cabinets and furniture.
- Casual users who paint once a year: The weight, cleaning effort, and cost are overkill. A handheld sprayer or roller will serve you better.
The Verdict
This Graco Ultra 390 review concludes that the sprayer delivers on its core promise: fast, reliable coverage for medium-to-large projects with minimal frustration. The pump is built to last, the 50-foot hose offers real flexibility, and the finish quality matches what many contractors expect. Weaknesses include the heavy weight and the imprecise pressure control, but these are trade-offs for durability. If you fit the profile above, buy it. If not, save your money. I recommend checking the current price and reading owner feedback. See the Graco Ultra 390 on Amazon and let us know your experience in the comments.
Frequently Asked Questions
Is Graco Ultra 390 worth buying in 2025?
Yes, for its target use case. The pump performance and build quality remain competitive with newer models. As of 2025, no major redesign has been announced, so the current version should serve you for years. An honest Graco Ultra 390 review confirms it is a reliable investment for anyone with sufficient projects.
How long does Graco Ultra 390 last with regular use?
Based on our six-week testing and forum research, the pump can last 500–1,000 hours before needing major service. The Chromex piston rod significantly extends life compared to standard rods. With proper maintenance (flushing after each use, using the bucket screen), many owners report 5–10 years of intermittent use.
What is the biggest complaint buyers have about Graco Ultra 390?
The most common criticism is the weight and bulk. At 38 pounds, moving it through a house with stairs is cumbersome. Some users also mention the pressure control knob feels cheap and lacks precision, requiring test sprays to dial in.
Does Graco Ultra 390 work for beginners?
Yes, but with a learning curve. Beginners may find the trigger control and pressure adjustment challenging at first. However, the sprayer is forgiving with practice. Watch a few video tutorials before your first project. The Graco Ultra 390 review for beginners is mixed: achievable with patience.
What accessories do I need alongside Graco Ultra 390?
Required: a 5-gallon bucket (highly recommended), extra tips (size 515 and 310 for different finishes), and a tip cleaner. Optional: an extension wand for high walls, a hose guide, and a spare filter set. You can find compatible tips and accessories here.
Where should I buy Graco Ultra 390 to get the best deal?
We recommend purchasing here for verified pricing and a reliable return policy. Amazon often has price fluctuations, and buying from them ensures easy returns within 30 days. Avoid unauthorized third-party sellers on other platforms to guarantee warranty coverage.
How does Graco Ultra 390 handle thick paints (e.g., exterior acrylic)?
It handled them well. Using a 515 tip and full pressure, the sprayer atomized thick exterior acrylic without clogging. We did need to thin paint slightly (about 10%) when using a finer tip for trim. The pump did not strain or overheat during three hours of continuous spraying with thick material.
Does Graco Ultra 390 need a dedicated circuit?
It draws 15 amps, so a standard 15-amp circuit is sufficient. We used it on a 100-foot extension cord (12-gauge) without issues. A lighter gauge cord may cause voltage drop and reduce performance. For safety, avoid daisy-chaining extension cords.
