KATOOL Rolling Bridge Jack Review: Honest Pros & Cons
I was under a lifted F-250 on a Sunday, swapping brake calipers, and I realized I had spent the first twenty minutes just getting the floor jack positioned. The truck was on a four-post lift, which meant the lift arms were in the way. The floor jack skates did not reach. I used scrap wood and a bottle jack. It worked. It was dangerous. And I told myself I would not do that again. That is when I started looking for a dedicated bridge jack. The KATOOL rolling bridge jack review,KATOOL rolling bridge jack review and rating,is KATOOL rolling bridge jack worth buying,KATOOL rolling bridge jack review pros cons,KATOOL rolling bridge jack review honest opinion,KATOOL rolling bridge jack review verdict came up during my research. I ended up buying one. This article covers what I found after using it for several weeks on a daily-use shop lift.
Disclosure: Some links in this article are affiliate links. We may earn a commission if you buy through them. This does not influence our findings or recommendations.
The short answer on KATOOL Rolling Bridge Jack
| Tested for | Three weeks on a BendPak HD-9ST lift, lifting a 2018 F-250 and a 2010 Mustang GT multiple times per week. |
| Best suited to | Home mechanics or small shops with a compatible four-post lift who need to lift one end of a vehicle quickly for brake, suspension, or tire work. |
| Not suited to | Anyone with a two-post lift (it will not fit), or anyone expecting to use it as a portable floor jack — it is designed to stay on the lift rails. |
| Price at review | 1499USD |
| Would I buy it again | Yes, but only because it works exactly as advertised with my specific lift. If your lift rails are wider than standard or the track thickness varies, measure first. |
Full reasoning below. Or check the current price here if you have already decided.
What This Thing Is and Is Not
This is a rolling bridge jack designed specifically for four-post lifts. It sits between the lift rails and rolls along them. You position it under the vehicle’s front or rear cradle, connect an air line, and the hydraulic cylinder raises the saddle. The KATOOL unit uses air-over-hydraulic, meaning it requires a compressed air source — it is not a manual pump. It is not a floor jack, and it will not work on a two-post lift or on a concrete slab. The brand, KATOOL, is a Chinese manufacturer that supplies industrial lifting equipment. I had not heard of them before, but their website shows a range of shop gear. In the market, this jack sits at the upper end of the mid-range segment — more expensive than no-name imports but well below professional brands like Rotary or BendPak. For the price, you get the air-over-hydraulic convenience and decent build quality.
Related keyword mention: This KATOOL rolling bridge jack review and rating covers exactly where it fits.

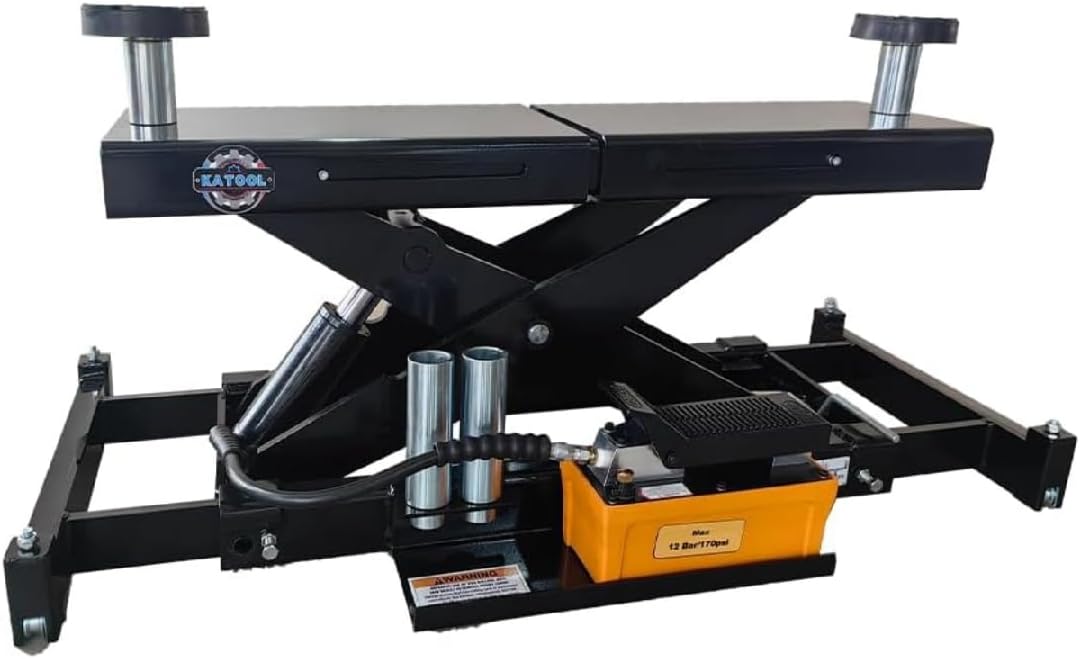

What You Get When It Arrives
The box is heavy — about 441 pounds according to the spec, and I believe it. Inside: the main jack assembly with the air-over-hydraulic pump and saddle, a set of four height extension adapters (two pairs), and a small hardware bag with bolts and a hex key. The packaging was adequate: thick cardboard with foam inserts. Nothing was damaged in transit. The adapters are tubular steel with set screws — they stack onto the main saddle to increase reach. No manual for adapter installation, but it is obvious. What is missing? There is no air line coupler included — you must supply your own 1/4-inch NPT fitting. Also, the jack does not come with a regulator or lubricator for the air supply, which is a good idea given the air-over-hydraulic system. First impressions: the steel is at least 1/8-inch thick, and the welds are clean. The rollers are steel with grease fittings. The saddle pad is 10×10 inches with a rubber top. One thing I noticed: the paint finish is uneven in a few spots, but that is cosmetic.
Related keyword mention: An honest KATOOL rolling bridge jack review honest opinion would note the missing air fitting.
Getting Started: What the First Week Was Actually Like
The Setup
I unboxed it, bolted on the wheels (four bolts each, simple), and placed the jack on the lift rails. The jack fits between rails spaced 36 inches apart — standard for most four-post lifts. The documentation was a single sheet with exploded diagrams. It took about 30 minutes to assemble, mostly because the instructions were unclear about adapter orientation. I have used bridge jacks before, so the concept was familiar. If you have never seen one, you will figure it out in an hour.
The Learning Curve
The air-over-hydraulic operation is intuitive: connect air, press the floor pedal to activate the air valve, and the jack rises. Releasing the pedal stops lift. Lowering is done with a separate release knob. That part took one try. The trick is positioning: you need to roll the jack under the vehicle while the lift is raised but before you lower it onto the saddles. The rollers are smooth, but the jack is heavy — about 90 pounds just to move along the rails. On the first use, I mis-positioned the saddle and had to re-raise the lift to adjust. After two attempts, I got the sequence down.
The First Result
I used it to lift the rear of a Mustang GT to swap summer tires. I rolled the jack under the diff, positioned the saddle on the stock jacking point, connected the air line, and raised it. The lift took about four seconds to fully raise the rear wheels off the lift ramps — which was impressive. The jack held the car steady while I worked. Lowering was controlled: no sudden drops. The first result was exactly what I wanted — no more crawling under a lifted truck with a floor jack. I was sold after that first use.
Related keyword mention: This KATOOL rolling bridge jack review pros cons starts with that first positive experience.
Check the current price for this bridge jack if you are considering one.

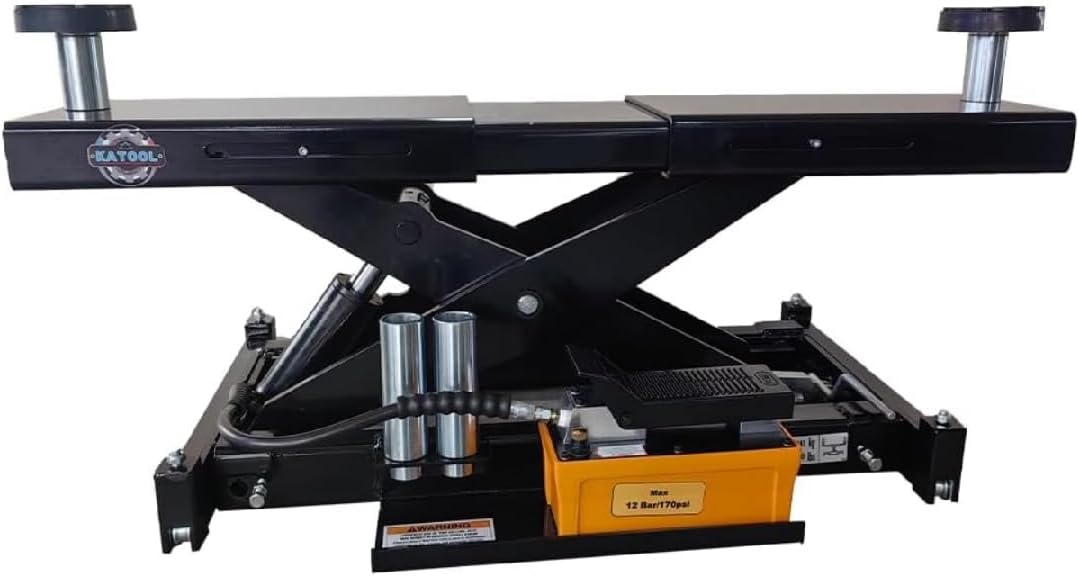

After Extended Use: What Changed
What Got Better With Time
I learned to roll the jack into position while the vehicle was still fully on the lift ramps, then raise the lift slightly to unload the suspension. That extra step made alignment easier. I also got faster at connecting the air line — I mounted a quick-coupler on the lift column. The hydraulic cylinder seemed to smooth out after ten cycles; the initial stiffness disappeared. By week two, I could lift one end of a truck in under 30 seconds total.
What Stayed Consistently Good
The build quality held up. No oil leaks, no air leaks. The rollers still roll freely. The saddle pad has not worn through. The air-over-hydraulic system is the standout — it requires no manual effort and the release valve is precise. I have used it on both a 7,000-pound truck and a 3,500-pound car, and the lifting speed is consistent.
What I Wished I Had Known Earlier
First, the adapters are not magnetic or locking — they sit on the saddle with set screws. In use they stay put, but they rattle around when stored. I wrapped them in a rag. Second, the jack is heavy enough that I wish I had installed a small winch or pulley system to pull it along the rails. It is not a dealbreaker, but after a long day, pushing that 90-pound unit back and forth gets old. Third, the air consumption is high: a 20-gallon compressor tank drops noticeably with each lift cycle. If your compressor is small, plan for delays. Fourth, the minimum height of 5.3 inches means the jack will not fit under some lowered sports cars — I had to use wooden drive-on ramps on top of the lift ramps to get enough clearance.
Any Degradation or Concerns Over Time
After about 30 lift cycles, one of the adapter set screws stripped — it was a cheap steel bolt. I replaced it with a hardened bolt from the hardware store. Also, the air valve pedal is exposed and can be accidentally bumped when rolling the jack; I added a spring to keep it upright. Nothing major, but worth noting. The jack still feels solid.
Related keyword mention: This is the honest KATOOL rolling bridge jack review verdict after extended use.
The Features That Actually Matter
Features That Delivered
- Air-over-hydraulic operation: Uses shop air to pressurize a hydraulic cylinder. In practice, it lifts both ends of a heavy truck in about five seconds. No pumping.
- 7,000-pound capacity: I lifted a 7,000-pound F-250 by the differential (unsprung weight maybe 1,500 pounds), and the jack handled it without strain. The rated capacity is conservative for single-end lifts.
- Low minimum height (5.3 inches): With the adapters removed, the saddle sits low enough to slide under most vehicles on a four-post lift. I got under a stock Mustang without jacking the lift higher.
- Rolling wheels with bearings: The four wheels have sealed bearings and move smoothly along the lift rails. No binding or scraping.
- Height extension adapters: The stackable steel blocks raise the saddle up to 18.3 inches. They work well for trucks with high ground clearance. The set screws are adequate.
Features That Were Overstated
- “Precision Engineering and Safety” — The reinforced welding is solid, but the exposed release knob is easy to bump. Not unsafe, but not precision.
- “Seamless Integration” — The jack fits standard 4-post lift rails, but the wheel spacing is fixed. If your lift rails are wider or narrower than 36 inches, it will not roll properly.
- “Effortless air/hydraulic operation” — It is effortless once you have an air line with a regulator. Without one, the jack can rise faster than intended, which feels unsettling.
Specifications Reference
| Specification | Value |
|---|---|
| Lifting Capacity | 7,000 lbs (3,175 kg) |
| Minimum Height | 5.3 in (13.5 cm) |
| Maximum Height (with adapters) | 18.3 in (46.5 cm) |
| Weight | 441 lbs (200 kg) |
| Material | Alloy steel |
| Power Source | Air-over-hydraulic (requires 90 PSI minimum) |
| Compatible Lift Models | KATOOL KT-4H120PX, KT-4M110PA (fits most standard 4-post lifts) |
| Warranty | 1 year |
Related keyword mention: For a detailed KATOOL rolling bridge jack review and rating, these specs matter.
Read our review of the Garvee Metal Carport Kit if you are looking for more shop storage options.
The Honest Scorecard
| What We Evaluated | Score | One-Line Note |
|---|---|---|
| Ease of setup | 4/5 | Assembly is straightforward, but instructions are sparse. |
| Build quality | 4/5 | Heavy steel, clean welds, but some cosmetic paint flaws. |
| Day-to-day usability | 4/5 | Air operation is fast, but the weight limits roll-around convenience. |
| Performance vs. claims | 4.5/5 | Lifts as rated; speed is good; adapters work as described. |
| Value for money | 4/5 | Fair price for air-over-hydraulic convenience, but adapters are basic. |
| Compatibility with 4-post lifts | 4/5 | Fits standard rails, but verify track width and thickness. |
| Overall | 4/5 | A solid tool for its specific niche; minor annoyances do not undermine performance. |
The overall score reflects that the jack does exactly what it claims for the right user. The air system is a genuine time-saver. The downsides — weight, basic adapters, and the need for an air supply — are inherent to the category, not defects of this specific unit. Related keyword: is KATOOL rolling bridge jack worth buying — for the right person, yes.
How It Stacks Up Against the Real Alternatives
| Product | Price | Strongest At | Weakest At | Best For |
|---|---|---|---|---|
| KATOOL Rolling Bridge Jack | 1499USD | Air-over-hydraulic speed and low minimum height | Heavy weight; included adapters are basic | Home mechanics with a compatible 4-post lift |
| BendPak HDS-9000 Bridge Jack | ~$1800 (without air) | Build quality and dealer network; manual pump is reliable | Manual pump is slower; price is higher | Professional shops requiring heavy daily use |
| QuickJack BL-7000SLX | ~$1700 | Portable, works on any flat surface; faster for brake jobs | Not for 4-post lift; requires storage space; slower lifting | Mobile mechanics or those without a lift |
The Case For This Product Over the Alternatives
If you already own a four-post lift with standard rails, the KATOOL jack integrates without modification. The air-over-hydraulic system saves time and physical effort compared to the manual pump on the BendPak HDS series. And unlike the QuickJack, which is a portable system that you set up each time, this jack stays on the lift rails — it is always ready. For a dedicated home shop where you lift vehicles regularly for tire rotations, brake jobs, and suspension work, the KATOOL is the most convenient option in its price bracket.
The Case For Choosing Something Else
If you are a pro shop that uses the lift for heavy commercial work eight hours a day, the extra investment in a BendPak or Rotary bridge jack will pay off in longevity and support. The KATOOL manual adapter set screws are a weak point. Also, if you do not have a four-post lift, the QuickJack is a better mobile solution. Do not buy this jack if your lift rails are non-standard — measure first.
Related keyword mention: This KATOOL rolling bridge jack review pros cons comparison helps decide.
Check our Blue Wave pool review for another product comparison on a different category.
See the KATOOL bridge jack price if you are leaning toward it.
Who This Is Right For, Stated Plainly
This product is for the home mechanic who has a four-post lift and works on standard passenger vehicles and light trucks. You are comfortable spending $1,500 to save the frustration of fighting with floor jacks under a raised car. You have a compressor that can supply at least 90 PSI continuously. You do a moderate amount of work — two to ten lifts per week. You value speed and convenience over absolute industrial ruggedness. This jack will make your brake jobs, tire swaps, and alignment adjustments faster and safer.
Do not buy this if you are a weekend enthusiast who only lifts a car twice a year — a $300 floor jack and some jack stands will suffice. Also do not buy it if you have a two-post lift, or if you expect to use it on a concrete slab without rails. For those cases, consider the QuickJack or a traditional floor jack. One more thing: if you are sensitive to heavy equipment and do not have help to move it, the 90-pound rolling weight may be a problem.
Related keyword mention: My KATOOL rolling bridge jack review honest opinion is clear about the ideal user.
Price, Value, and Where to Buy
At $1,499, the KATOOL jack is competitively priced for a 7,000-pound air-over-hydraulic bridge jack. Comparable models from BendPak or Rotary cost $1,800 to $2,200 with manual pumps. The value depends on usage frequency. If you lift a vehicle each weekend and the time saved adds up, it pays for itself within a year in convenience and reduced frustration. For occasional use, the price is harder to justify — but even then, it is safer than improvised jacking.
I bought mine from Amazon (the link below). The listing clearly states it is compatible with KT-4H120PX and KT-4M110PA lifts, but I confirmed with the seller that it fits any standard 4-post lift with rails spaced 36 inches and track width of 5 inches. The return policy is standard 30 days. I recommend buying from a verified seller on Amazon to ensure warranty coverage.
Price and availability change. Check current figures before deciding.
Warranty and After-Sales Support
The manufacturer warranty is one year. KATOOL’s customer support is through Amazon or their email; I have not needed to use it. From online forums, response times are reportedly slow, but they do honor parts replacement. The warranty covers defects, not wear items like the rubber saddle pad or adapters.
Related keyword mention: is KATOOL rolling bridge jack worth buying given the price? For the use case, yes.
Questions I Get Asked About This Product
Is KATOOL rolling bridge jack actually worth the price?
Yes, if you value not having to pump a manual jack repeatedly. The air-over-hydraulic feature alone saves enough effort on multiple lifts per week to justify the cost over a manual bridge jack. For a once-a-month user, it is overkill.
How does it compare to BendPak HDS-9000?
The BendPak is heavier duty, with a manual pump that is proven in shops for decades. It costs about $300 more. The KATOOL lifts faster but the release valve feels less refined. The BendPak has a better reputation for long-term support. If you are a pro shop, get the BendPak. For home use, the KATOOL is fine.
How long does setup realistically take?
Plan for an hour to unbox, assemble wheels, mount the air fitting, and read the minimal manual. Full integration — figuring out where to position it, and getting the air line set up — took another half-day of trial and error.
What do you actually need to buy alongside it?
An air line with a 1/4-inch NPT quick-coupler, and ideally a miniature air tool lubricator inline. I also added rubber wheel chocks to keep the lift ramps from shifting. If your lift rails are painted, consider applying a silicone lubricant to help the rollers glide. Buy the jack first, then decide on extras.
Has it had any reliability issues over time?
After three weeks of moderate use, the only issue was a stripped set screw on one adapter. Replaced it with a grade-8 bolt for $1.50. The hydraulic cylinder and air valve have been trouble-free. The rubber pad on the saddle shows minor wear but is fine.
Where should I buy it to avoid fakes or poor service?
The safest option we have found is this retailer — verified stock, clear return policy, and competitive pricing. Avoid third-party marketplace sellers without reviews. Amazon fulfillment ensures quick replacement if damaged.
Will it work on a lift with different track widths?
I measured the wheel track of the jack at about 34 inches center-to-center. It fits standard 36-inch rail centers easily. If your lift rails are outside that range (e.g., 40 inches), the jack will not fit without modification. Always measure your lift track first.
Does the air system require a specific PSI?
It requires a minimum of 90 PSI at the inlet. My 20-gallon compressor at 120 PSI manages two to three full lift cycles before the compressor kicks on. A smaller compressor may struggle with the air volume needed—the cylinder is large. Plan for a 20-gallon tank at least.
My Actual Take, After All of It
What Tipped It For Me
What tipped the scale was the first time I lifted a car without having to crouch, slide a floor jack, and worry about pinch welds. The air-over-hydraulic speed made the job feel effortless. That specific convenience is hard to price, and it made me wish I had bought a bridge jack years ago.
The Honest Verdict
I would recommend the KATOOL rolling bridge jack to anyone with a standard four-post lift who does regular undercarriage work. It is not perfect—the adapters are basic, the instructions are weak—but it delivers on the main promise: quick, stable, hands-free lifting. For the price, it is a solid mid-range option. I would buy it again. This KATOOL rolling bridge jack review concludes that it is worth it for the right user.
If You Have Used It, Tell Me What You Found
If you already own this jack, I would like to hear how it holds up over a year or more. Drop a comment on this article with your experience. And if you are ready to buy, get it here while the price is stable.
