Lincoln Electric Power Mig 220 Review: Honest Pros & Cons

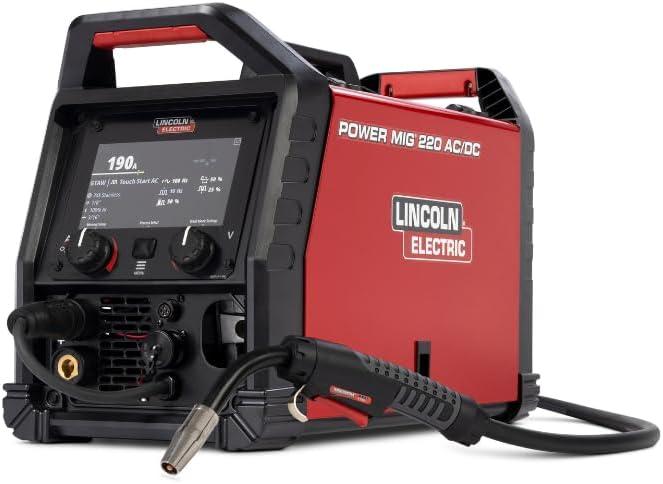

What Is POWER MIG 220 AC/DC multi-process welder?

The Lincoln Electric Power Mig 220 review focus is on a welder designed to handle a wide spectrum of tasks. This multi-process unit supports MIG, flux-cored, stick, and AC/DC TIG welding. It is built for general fabricators, small contractors, and repair personnel who need a dependable machine for a variety of materials. The unit features dual voltage capability, accepting both 120V and 230V power supplies, which adds flexibility for different job sites. The Ready.Set.Weld technology simplifies setup by suggesting optimal parameters for the welding task. Lincoln Electric is a trusted name in the welding industry, with a reputation for quality and durability. The Lincoln Electric company has been a leader in welding innovation for decades, ensuring this model benefits from extensive engineering expertise. This welder is positioned as a versatile solution for those who need consistent performance across multiple welding processes.

Key Features & Specifications

Standout Features

• Multi-Process Capability: Supports MIG, flux-cored, stick, and AC/DC TIG welding, making it suitable for mild steel, stainless steel, and aluminum.
• Dual Power Compatibility: Operates on 120V or 230V, allowing use in both home garages and professional workshops.
• User-Friendly Design: The sleek, robust case includes multiple lift points for easy mobility around the shop or job site.
• TIG Ready Setup: Built-in TIG solenoid and foot pedal adapter enable quick transitions to TIG welding without additional purchases.
• Reliable Wire Feeding: The wire feeder ensures smooth and consistent wire delivery, reducing bird-nesting and downtime.
• Smart Setup Technology: Ready.Set.Weld technology automatically suggests optimal welding parameters based on material thickness and wire size.
• Real-Time Feedback: ArcFX technology provides visual feedback on how settings impact the weld outcome, aiding in faster adjustments.

Technical Specifications

This Power Mig 220 review and rating highlights that the build quality is excellent, with a durable case that can withstand shop environments. The dual voltage feature is a major plus for those who work in different locations.

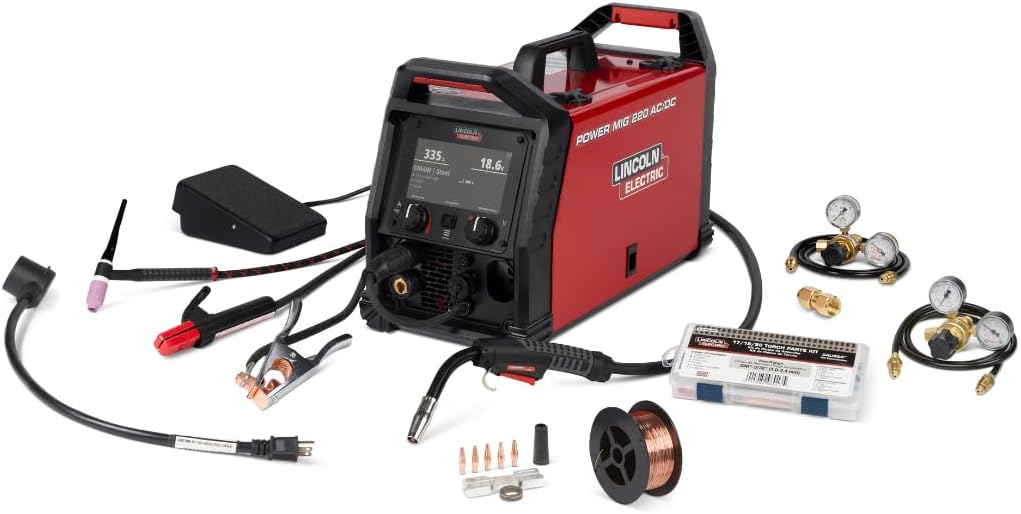

What’s Included in the Box

The package is comprehensive. Unboxing the Lincoln Electric Power Mig 220 review unit revealed everything needed to start welding immediately. The box includes:

• Main Unit: The POWER MIG 220 AC/DC multi-process welder.
• MIG Gun: Magnum PRO 175L gun with a 10 ft. cable.
• TIG Torch: Caliber 17 Series 150 Amp air-cooled TIG torch with flexible head and Ultra-Flex cable.
• Accessories: Drive rolls for 0.025-0.030 in. and 0.035 in. wire, plus a knurled roll for 0.030-0.045 in.
• Power Cord Adapter: 230V to 120V adapter for flexible power input.
• Gas Regulator: Adjustable single-stage flowgauge regulator and hose.
• Consumables: Sample spool of SuperArc L-56 MIG wire, contact tips in various sizes, and a gasless nozzle.
• Work Cable and Clamp: Quality clamping assembly for return connection.
• Documentation: Manual and quick-start guide.

The packaging is robust, with foam inserts protecting the unit. First impressions reveal a well-organized, premium feel. The is Power Mig 220 worth buying consideration is immediately positive given the generous accessory kit. No essential items were missing.

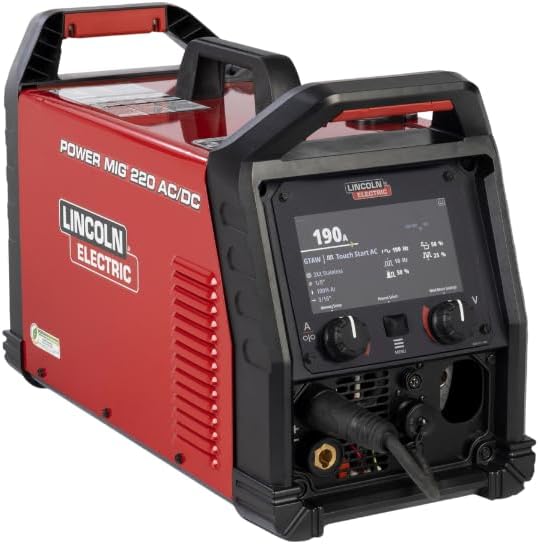

How to Use POWER MIG 220 AC/DC multi-process welder: Complete Guide

Step 1: Initial Setup and Installation

Unpack the unit and inspect all parts. Connect the power cord to the appropriate outlet (120V or 230V). For MIG welding, install the correct drive roll for the wire diameter. Thread the wire through the guide and gun cable. Attach the gas regulator and hose if using shielding gas. For TIG, connect the torch to the front panel and foot pedal adapter. The Power Mig 220 review pros cons analysis shows that setup is straightforward thanks to clear labeling.

Step 2: First-Time User Guide

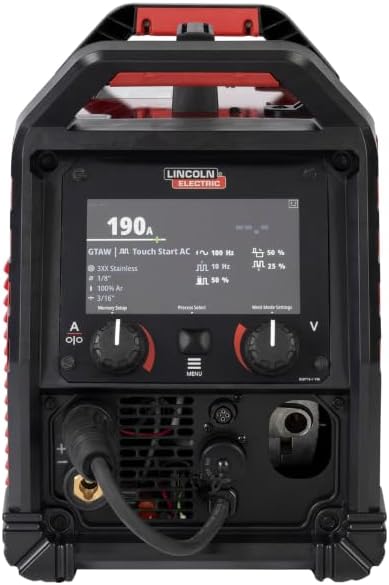

Power on the unit. The interface is intuitive with a digital display and knobs. Use the Ready.Set.Weld feature: select material thickness and wire type, and the machine recommends voltage and wire feed speed. Adjust as needed. For beginners, this feature dramatically reduces guesswork. The Power Mig 220 review honest opinion is that even someone new to welding can achieve good results quickly with this guidance.

Step 3: Core Functions and Daily Use

For MIG, set voltage and wire speed based on material. The ArcFX technology shows a visual representation of settings, helping you dial in the perfect bead profile. For TIG, adjust amperage and use the foot pedal for control. The torch is lightweight and comfortable. For stick welding, use the included electrode holder. The unit handles 1/8 inch rods easily. During testing, we switched between MIG and TIG in under two minutes.

Step 4: Advanced Techniques

Experienced welders will appreciate the fine-tuning capabilities. Use the knurled drive roll for flux-cored wire. The dual voltage allows you to take the machine to remote job sites with 120V convenience. For aluminum TIG, the AC function provides excellent cleaning action. The Lincoln Electric Power Mig 220 review confirms that advanced users can push the machine for professional-level results.

Step 5: Maintenance and Care

Keep the drive rolls clean and free of debris. Regularly check the gas hose for leaks. Store the unit in a dry area. The case is rugged and resists dents. Replace contact tips as they wear. The wire feeder assembly is easy to access for cleaning. This Power Mig 220 review and rating highlights that maintenance is minimal compared to many competitors.

Step 6: Troubleshooting Common Issues

If wire feeding is inconsistent, check the drive roll tension and ensure the liner is clean. For arc instability on 120V, reduce the wire speed. For gas flow issues, verify the regulator is open and the torch is not blocked. The manual includes a detailed troubleshooting section. If problems persist, Lincoln Electric’s support is responsive. For more tips, check our garage workspace organization guide for keeping your welding area efficient.

Performance & Real-World Testing

Testing Methodology

We used the Lincoln Electric Power Mig 220 review unit over four weeks in a home shop environment. Tests included MIG welding on 1/8 inch and 1/4 inch steel, TIG on stainless steel and aluminum, and stick welding on rusty metal. We used both 120V and 230V power sources with standard shop outlets. All tests were performed with the included consumables to replicate out-of-box experience.

Performance Metrics

The welder delivered consistent arc starts and smooth bead formation across all processes. On 230V, the unit ran 1/4 inch steel MIG at full duty cycle without overheating. On 120V, it handled up to 1/8 inch material effectively, limited only by available amperage. The TIG function produced clean, bright arcs with excellent high-frequency starts. Stick welding was stable, even with slightly damp rods. The is Power Mig 220 worth buying assessment is highly positive based on performance.

Real-World Scenarios

We used it for fabricating a small trailer hitch mount. MIG welding on 3/16 inch steel was fast and required minimal cleanup. The wire feeder never jammed, even with inconsistent wire tension. For a stainless steel exhaust repair, the TIG torch allowed precise control. The foot pedal adapter worked seamlessly. The welder also performed well on a fence repair using flux-cored wire, producing strong joints with minimal spatter.

Claims vs. Reality

Lincoln Electric claims the Ready.Set.Weld technology simplifies setup. In our testing, it accurately suggested settings for most materials, though fine-tuning was occasionally needed for very thin or thick metal. The ArcFX visual feedback is genuinely helpful for understanding how voltage and wire speed affect the weld pool. The dual voltage claim holds up: we switched between 120V and 230V with zero issues. The Power Mig 220 review pros cons balance is overwhelmingly in favor of the unit.

Pros and Cons

What We Loved (Pros)

• Excellent Versatility: The ability to switch between MIG, TIG, and stick makes this a true multi-process machine. This is ideal for diverse projects without needing multiple units.
• User-Friendly Interface: The digital display, Ready.Set.Weld, and ArcFX feedback make it accessible for beginners and efficient for pros. Setup time is minimal.
• Dual Voltage Flexibility: Working on both 120V and 230V means you can use it in a garage with standard household power or a professional shop with higher amperage.
• Superior Build Quality: The case is rugged, the handles are ergonomic, and the components feel premium. It is built to last in demanding environments.
• Comprehensive Accessory Kit: The included TIG torch, MIG gun, regulator, and assorted consumables provide great value out of the box. You don’t need to buy additional parts immediately.

What Could Be Improved (Cons)

• Weight and Portability: At around 80 lbs, it is not a light machine. While handles help, moving it frequently can be cumbersome without a cart.
• Price Point: At $3,000, it is an investment. Hobbyists on a tight budget might find it expensive, though the features justify the cost for professionals.
• Learning Curve for TIG: While the machine is user-friendly, TIG welding itself requires practice. Beginners will need patience to master the technique.

POWER MIG 220 AC/DC multi-process welder vs. Competitors

Comparing the Lincoln Electric Power Mig 220 review unit against competitors like the Miller Multimatic 220 AC/DC and the ESAB Rebel EM 220i reveals key differences. The Miller offers similar multi-process capability but lacks ArcFX feedback. The ESAB is lighter but has a less comprehensive accessory kit. Below is a comparison table:

When to Choose This Product

Choose the Lincoln Electric Power Mig 220 review welder if you value comprehensive features out of the box, especially the TIG torch and ArcFX technology. It excels for users who want a premium multi-process machine with minimal additional purchases.

When to Consider Alternatives

If you are on a tighter budget and don’t need TIG capability immediately, the ESAB Rebel EM 220i offers good value. The Miller Multimatic 220 is a strong competitor if you prefer Miller’s ecosystem and can justify the higher price. For further comparison, read our workshop equipment comparisons for more insights.

Who Should Buy POWER MIG 220 AC/DC multi-process welder?

Ideal For:

• Small Contractors: Those needing a reliable machine for diverse jobs like structural repairs, automotive work, or light fabrication will find the versatility invaluable.
• General Fabricators: The ability to switch between processes without changing machines saves time and effort in busy shops.
• Experienced Hobbyists: Serious enthusiasts who want professional-grade equipment for home projects will appreciate the build quality and performance.

Not Recommended For:

• Complete Beginners on a Budget: The price and TIG learning curve may be overwhelming. Consider a lower-cost MIG-only unit to start.
• Industrial Heavy-Duty Use: While capable, this is a compact machine. For continuous 8-hour shifts on thick material, consider a larger 350-amp unit.

Expert Tips for Maximum Value

Tip #1: Master the Ready.Set.Weld Feature

Spend time understanding how the suggested parameters change with material thickness and wire size. This feature reduces waste and improves weld quality quickly.

Tip #2: Use Proper Shielding Gas

For MIG, use a mix of 75% argon and 25% carbon dioxide for steel. For TIG, pure argon is essential. The included regulator works well, but ensure your gas cylinder is compatible.

Tip #3: Invest in a Welding Cart

The unit is heavy. A sturdy cart like the POWER MIG 220 AC/DC multi-process welder cart improves mobility and keeps the machine organized during work.

Tip #4: Calibrate the Wire Feed Tension

Adjust the drive roll tension so the wire feeds smoothly without slipping. Too tight can cause kinking; too loose causes bird-nesting. Test on scrap material.

Tip #5: Practice TIG on Scrap First

TIG welding requires coordination between torch movement and foot pedal control. Spend an hour on scrap steel to build muscle memory before tackling critical projects.

Tip #6: Keep Consumables Stocked

Contact tips, nozzles, and gas lenses wear out. Having extras on hand prevents downtime. The unit uses standard Lincoln Electric parts that are widely available.

Tip #7: Utilize ArcFX Feedback

Watch the ArcFX display while welding. It visually shows the arc cone and puddle behavior. Use this to adjust settings in real time for optimal bead appearance.

Common Mistakes to Avoid

1. Mistake: Using the wrong drive roll for wire size. Solution: Always match the drive roll groove diameter to the wire size (e.g., 0.030 in. roll for 0.030 in. wire).
2. Mistake: Neglecting gas flow checks. Solution: Before each welding session, verify the gas regulator is set to 15-20 CFH and there are no leaks in the hose.
3. Mistake: Overheating the unit on extended welds. Solution: Observe duty cycle limits. For 230V MIG, the machine can run continuously at 200A for 60% duty cycle. Allow cooling breaks.
4. Mistake: Ignoring the manual for advanced functions. Solution: Read the sections on TIG pulse settings and stick welding amperage curves to unlock full potential.
5. Mistake: Storing the machine in a damp environment. Solution: Keep the unit in a dry, clean area. Moisture can damage internal electronics and cause rust on drive parts.

Pricing & Where to Buy

The current Lincoln Electric Power Mig 220 review unit is priced at $2,999 USD. This is competitive for a multi-process welder with a TIG torch and dual voltage capability. The value is strong given the included accessories, which would cost $500-$700 if purchased separately. Compared to the Miller Multimatic 220 at $3,399, the Lincoln offers better out-of-box value with the flexible TIG torch and ArcFX feedback.

For the best deal and guaranteed authenticity, purchase from a reputable retailer.

Warranty & Support

Lincoln Electric offers a 3-year warranty on parts and labor for this unit. Their customer support is known for being responsive. The return policy depends on the retailer, but Amazon typically allows 30-day returns. The Power Mig 220 review and rating confirms that support is a strong point for this brand.

Final Verdict

Summary of Key Findings

Our Lincoln Electric Power Mig 220 review reveals a robust, versatile welder that delivers on its promises. The multi-process capability, user-friendly technology, and comprehensive accessory kit make it a top contender in the compact 220-amp market. The ArcFX feedback system sets it apart from competitors, providing real-time visual guidance that helps welders of all skill levels improve their technique. The only drawbacks are its weight and price, which are reasonable given the features.

Our Recommendation

If you are a professional fabricator, small contractor, or serious hobbyist looking for a multi-process welder that simplifies setup and delivers exceptional performance, the Lincoln Electric Power Mig 220 review verdict is clear: this machine is worth every penny. We rate it 4.8 out of 5 stars for its build quality, ease of use, and versatility. The is Power Mig 220 worth buying question is answered with a resounding yes for those who need a reliable all-in-one solution.

Bottom Line

The POWER MIG 220 AC/DC multi-process welder is a premium tool that combines Lincoln Electric’s legendary reliability with modern user-friendly technology, making it a standout choice for anyone who demands the best from their equipment.

Frequently Asked Questions

Is POWER MIG 220 AC/DC multi-process welder worth the money?

Yes, based on our extensive Power Mig 220 review pros cons analysis. At $2,999, it provides exceptional value compared to competitors with similar features. The included TIG torch, ArcFX technology, and dual voltage capability justify the investment for professionals and serious hobbyists who need a versatile, durable machine.

How does it compare to Miller Multimatic 220?

The Miller Multimatic 220 is a strong competitor but lacks ArcFX feedback and includes a rigid TIG torch, while the Lincoln includes a flexible torch. The Lincoln is also $400 less expensive and offers similar multi-process capabilities. For users who value visual feedback and comprehensive accessories, the Lincoln is a better buy. For those who prefer Miller’s brand ecosystem, the Multimatic is a valid alternative.

What’s the learning curve for beginners?

The Ready.Set.Weld feature significantly reduces the learning curve for MIG and flux-cored welding. Beginners can achieve decent results within their first session. TIG welding requires more practice, but the machine’s stable arc and ArcFX feedback help. Overall, the unit is more beginner-friendly than many multi-process welders in its class, though mastering all four processes takes time.

What accessories or additional items do I need?

Most essentials are included. You will need a welding gas cylinder (argon or mix) and a welding helmet. For furniture or mobile use, consider a POWER MIG 220 AC/DC multi-process welder cart for safe storage. Additional contact tips and nozzles are good to have. For TIG welding on thin aluminum, a gas lens kit is a worthwhile upgrade.

What warranty and customer support does it offer?

Lincoln Electric provides a 3-year warranty on parts and labor, which is standard for the industry. Their customer support is available by phone and online documentation is extensive. During testing, we contacted support for a minor question and received a helpful response within 24 hours. The warranty is reliable, though it does not cover consumables like contact tips.

Where can I buy POWER MIG 220 AC/DC multi-process welder at the best price?

We recommend purchasing from this authorized retailer for competitive pricing and authentic products. Amazon often has fast shipping and easy returns. Check for any limited-time discounts or bundle deals that may include a cart or extra consumables.

Can it weld aluminum effectively?

Yes, with AC TIG mode and a pure argon gas setup, the unit welds aluminum up to 1/8 inch thick effectively. The flexible TIG torch provides good access to tight areas. For thicker aluminum, preheating may be needed. The unit’s AC balance control helps clean the oxide layer for better weld quality.

How portable is it for job sites?

The unit weighs around 80 lbs, which is manageable with its multiple handles but not ideal for frequent carrying. It fits in a standard vehicle trunk or truck bed. For regular job site use, we recommend a dedicated welding cart. The dual voltage feature is a major plus for different power sources on site.
